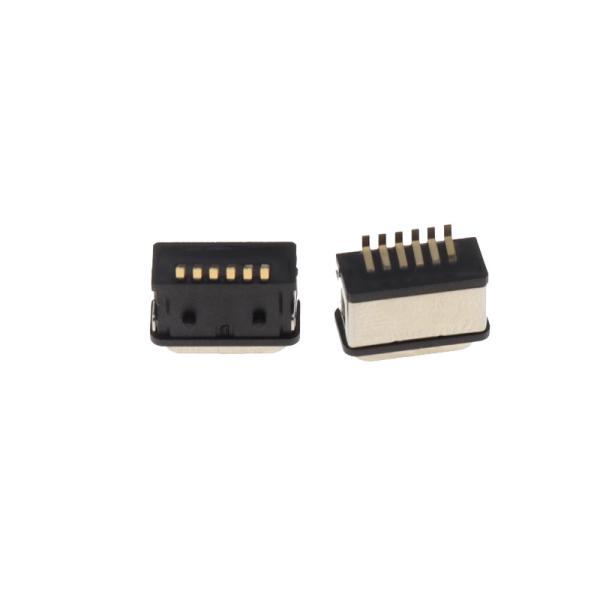

    Professional Manufacturer Of Waterproof USB Type C 6P IPX8 SMT Types Of Female Connector

    Ask Lasest Price
    Brand Name : DHT
    Model Number : CUSB-203N05A01-B
    Price : $0.62
    Payment Terms : T/T, Western Union
    Supply Ability : 3000000PCS/M
    • Product Details
    • Company Profile

    Professional Manufacturer Of Waterproof USB Type C 6P IPX8 SMT Types Of Female Connector

    Professional Manufacturer Of Waterproof USB Type C 6P IPX8 SMT Types Of Female Connector



    Product Description

    Features of USB 3.1 C type connector:
    1.An entirely new design which will feature bidirectional plugging in of USB devices so that the user doesn’t need to take care of which way the USB cable is being plugged in.
    2.USB 3.1 will be smaller than the current standards being used for USB. This will enable slimmer and sleeker product designs of USB enabled devices.
    3.Type C connector and cable will support scalable power charging.
    4.Scalability – the connector design will scale for future USB bus performance.

    Spec of USB 3.1 C type connector
    1. Materials
    *Hoursing: LCP Black
    *Terminals: Copper Alloy C2680
    *Gold plated in contact area: Tin 40u''min plated in termination Nickel Plated Overall.
    *Shell: C2680/SPCC t=0.4mm
    *Nickel 40u''min plated overall

    2. Electrical Characteristics

    Professional Manufacturer of Waterproof USB Type C 6P Sinking SMT Connector IPX7
    1.MATERIAL:
    1-1.OUTSIDE SHELL:
    SUS301-1/2H T=0.20mm
    1-2.INNER SHELL:
    SUS301-1/2H T=0.20mm
    1-3.SIGNAL:
    SUS301-H T=0.10mm
    1-4.RFI PAD:
    SUS301-H T=0.10mm
    1-5.HOUSING:
    LCP+30%G.F. UL94 V-0 BLACK
    1-6.TEMINARL:
    COPPER ALLOY C19400-H.T=0.10mm
    2.PLATING SPECIFICATION
    2-1.TERMINAL:
    GOLD PLATED.
    2-2.SHELL:
    NICKEL PLATED 60μ"MIN.
    3.MECHANICAL PERFORMANCE
    3-1.INSERTION FORCE:
    5N~20N.
    3-2.WITHDRAWAL FORCE:
    INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
    3-3.DURABILITY:
    10000 CYCLES.
    4.ELECTRICAL PERFORMANCE
    4-1.CURRENT RATING:
    3A.
    4-2.LLCR: CONTACT:
    40mΩ MAX(INITIAL).
    4-3.INSULATION RESISTANCE:
    UNMATED: 100MΩ MIN.
    4-4.DIELECTRIC WITHSTAND VOLTAGE:
    100V/AC.
    5.IR REFLOW:
    THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
    6.OPERATING TEMPERATURE RANGE: -55°C~105°C.
    7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.


    We are connector supplier in Shenzhen,China,over 5 years experience,provide different types of connector,and also could customize the product based on your requirement,accept OEM/ODM,so if possible,pls just send me email about your inquiry,we will provide the most competitive price,high quality and best service,thanks!
    Contact Name:Joe lin
    Phone/Whatsapp:+86-15820421712
    Skype:sailede1688


    What can we do for you?

    1. We can offer free samples.


    2. Various operation force, height, and color for your choice.


    3. Products can be developed according to customer requirements


    Why us?

    1. We have abundant production management to guarantee the quality.


    2. Check quality one by one before shipping, We have good quality-control team and precision testing machine to control the quality seriously


    3. According your design to produce quality product.
